    How do we make Tessel faster? How do we keep Tessel simple for users yet powerful enough to take on big problems? What does it take to make a bulletproof wifi connected microcontroller that can truly deliver on the promise of the Internet of Things? These were just a few of the questions which guided the projects I worked on the summer.

    To solve these sorts of problems, I focused on improving the speed of Tessel by writing new firmware apis and porting the Tessel platform to other chipsets. I learned a lot about developing hardware and software platforms, so I thought I’d share some of the insights I gained along the way.


    How Fast? This Fast

    Moving Pixels

    I was inspired to work on improving the Tessel’s performance after reading a request on our forums for an LCD screen module. I naively believed that getting the Tessel to cooperate with a screen would be as simple as porting a C graphics library to JavaScript and plugging in an LCD.

    My first attempt resulted in a graphics library which could output approximately 1 pixel a second. At this rate, filing a phone screen sized display would take approximately 100 hours…bummer. I profiled the program to find what was taking so long and it turned out that making a JavaScript call per pixel was causing the library’s performance to degrade dramatically.

    Not wanting to give up quite yet, I decided to dive into the firmware and see if there was any way to pump out pixels at a faster rate. I created a new hardware API for the Tessel, the SPI Batch API, which improved the performance of the graphics library I wrote by a factor of 400! With this new implementation we went from making one JS call per pixel to one JS call for the entire screen. When I tested the library, colorful pixels began pouring into the screen, proving that graphics programming is possible on the Tessel.

    Developing a graphics library and a firmware API for the Tessel taught me a lot about the power and limitations of JavaScript. When it comes to event driven programming and IO bound tasks, JavaScript is great. However, when it comes to matters of raw speed, C is usually the right answer. This insight can be distilled into the following heuristic which is applicable any time you’re writing code which involves hardware and software components:

    For CPU bound tasks, like pushing pixels to a buffer,write your code in C. For IO bound tasks, like reading from a file or handling HTTP requests, use a high level language like JavaScript.

    Portable Tessel - Modules Everywhere

    After modifying the Tessel firmware to handle graphics, I talked to the team about other ways we could improve Tessel’s performance. We realized that many of our problems could be solved by having an operating system. At the moment, Tessel doesn’t run an operating system; rather, it has a firmware layer which can run a single program. As a result, we can’t use libraries which rely on an OS. By running Tessel on a Linux board, we would have access to these sorts of libraries such as V8, Google’s JS engine, and the Linux TCP stack. This insight blossomed into the Portable Tessel Platform, a node package which emulates the Tessel API on a computer such as the Raspberry Pi or Cubieboard.


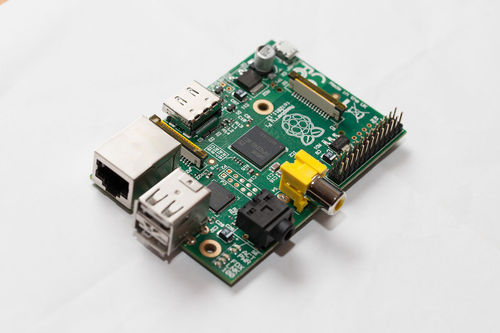

    Raspberry Pi

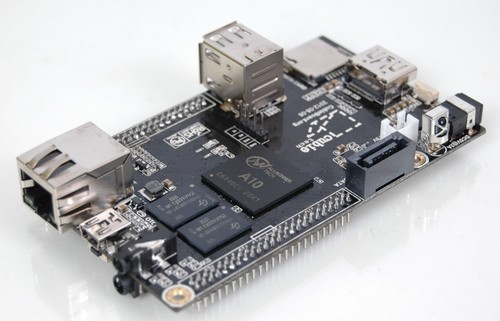

    Cubieboard

    I started off this project by writing up a spec and picking node libraries that would emulate the hardware APIs for the Tessel. Our modules each use either SPI, UART, GPIO pins, I2C, or some combination thereof. After some quick searching on NPM, I found found libraries which would implement the needed protocols.

    The libraries I found seemed to work, so I assumed that all I had to do was wire the boards to the modules. Unfortunately, I neglected to make sure that the hardware of the different boards was similar enough to the Tessel and that Linux fully supported all of the drivers I needed. I began testing some of our modules on the Raspberry Pi and Cubieboard, and I found that I2C on the Raspberry Pi has issues communicating with our modules, as its processor doesn’t support certain commands such as repeated start transfers. Similarly, the Cubieboard doesn’t have SPI support unless you recompile the kernel drivers.

    After discovering that the boards did not support the needed protocols, I began to research how other people got them working. It took a while, but eventually I found a way to properly compile the drivers for the Cubieboard and how to fix the I2C driver for Raspberry Pi. Once I had working drivers, I just had to hook up the boards to the Tessel modules and the Portable Tessel Platform was born. Now users can build projects using our hardware modules on their own boards, opening our platform up to people who haven’t purchased a Tessel yet.

    Working on the Portable Tessel Platform taught me a lot about the challenges of hardware-software integration. In pure software projects, it is easy to just swap out or modify source code to meet your needs. In hardware, planning out everything ahead is necessary as some boards not have all the features you need. I was lucky that I found new drivers for the Cubieboard and Raspberry Pi, but picking boards which have full support for SPI and I2C would have made building the Portable Tessel Platform much easier.

    Next year I’ll be back at college so you won’t be hearing from me on the blog for a while. Please message me @nlintz if you get a chance to build any exciting hardware projects on the Portable Tessel Platform or graphics projects using SPI Batch.
